Hydraulic check valve or non-return valve

A hydraulic check valve, also known as a non-return valve, is a mechanical device used in hydraulic systems to allow fluid flow in one direction and prevent it in the opposite direction. This valve is crucial in maintaining the proper functioning and efficiency of hydraulic systems.
The valve which allows flow of oil in only one direction and block the reverse flow of oil, is known as check valve or non return valve.

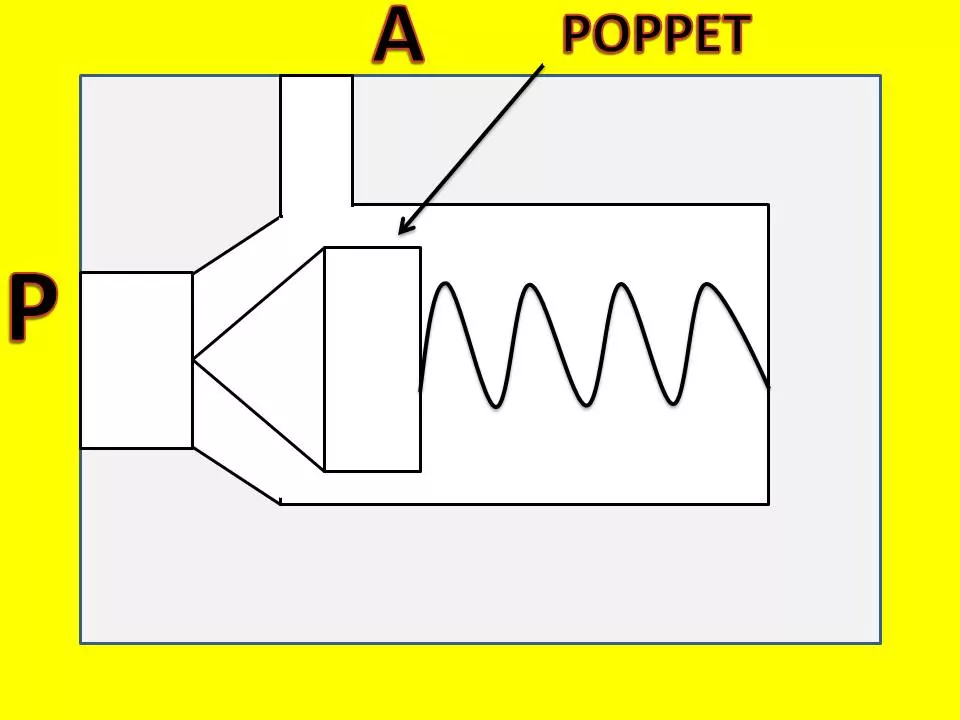

Non Return Valve or Check Valve

Functionality:

One-way flow: Check valves permit fluid to flow in one direction (usually from the inlet to the outlet) while preventing reverse flow.
Non-return: The primary purpose is to ensure that fluid does not flow back into the system, maintaining the desired direction of flow.

Construction of hydraulic check valve or non-return valve

The construction of a hydraulic check valve, or non-return valve, can vary depending on the specific type and design of the valve. Here, I’ll provide a general overview of the construction of a simple spring-loaded check valve, which is a common type used in hydraulic systems.

Components of a Spring-Loaded Hydraulic Check Valve:

Body:

The body is the outer casing of the valve and typically made of metal or other durable materials.
It contains the internal components and provides the structure to support the valve’s functionality.

Valve Seat:

The valve seat is a sealing surface inside the valve body against which the valve disc or ball rests to prevent fluid from flowing backward.

Valve Disc or Ball:

The valve disc or ball is a movable component that opens or closes the valve based on the direction of fluid flow.
In the case of a spring-loaded check valve, the disc is typically attached to a hinge or pivot.

Spring:

The spring is responsible for exerting force on the valve disc to keep the valve closed.
It acts against the flow of fluid, requiring a certain pressure to open the valve.

Hinge or Pivot:

In some designs, the valve disc may be attached to a hinge or pivot point, allowing it to swing or pivot when fluid flow is in the permitted direction.

Inlet and Outlet Ports:

These are the openings in the valve body through which fluid enters and exits the valve.
The valve is designed to allow fluid flow from the inlet to the outlet but prevent flow in the reverse direction.

Considerations:

Materials: Components should be made from materials compatible with the fluid being handled and resistant to corrosion or wear.
Spring Strength: The spring must be selected to provide the appropriate force to keep the valve closed under normal operating conditions.

Hydraulic check valve or non return valve working principle

The working principle of a hydraulic check valve, also known as a non-return valve, is based on its ability to allow fluid flow in one direction while preventing flow in the opposite direction. There are different types of hydraulic check valves, but the basic principles remain similar.

Here, we’ll discuss the general working principle:

Forward Flow (Open Position):

When fluid flows in the desired direction (from the inlet to the outlet), the pressure of the fluid overcomes the force exerted by any internal spring or other mechanisms in the valve.
As the pressure increases on the inlet side, it lifts a movable component (such as a disc or ball) off its seat, allowing fluid to pass through the valve freely.

Reverse Flow (Closed Position):

If there is an attempt at reverse flow, the pressure on the outlet side becomes greater than on the inlet side.
The movable component (disc or ball) is forced back onto its seat by external forces, such as a spring, gravity, or the pressure difference itself.
The valve seat acts as a barrier, preventing the flow of fluid in the reverse direction.

Spring-Loaded Check Valve:

In the case of a spring-loaded check valve, the spring is a crucial component. The spring is designed to exert a force on the movable component, keeping it in the closed position when there is no or insufficient forward flow.
The spring force must be overcome by the pressure of the fluid in the forward direction to open the valve and allow flow.

Swing Check Valve:

In a swing check valve, the movable component is a hinged flap. Forward flow pushes the flap open, allowing fluid to pass through. When flow stops or reverses, the flap swings back and closes, preventing reverse flow.

Ball Check Valve:

In a ball check valve, a spherical ball is used as the movable component. Forward flow lifts the ball off the seat, permitting flow. When the flow stops or reverses, the ball returns to its seat, blocking reverse flow.

Working of hydraulic check valve or non-return valve

The working of a hydraulic check valve, also known as a non-return valve, is relatively straightforward. The valve allows fluid to flow in one direction while preventing reverse flow. The exact operation can vary depending on the specific design and type of check valve, but here’s a general overview of how a spring-loaded check valve works:

Valve Components:

Valve Body: The outer casing that houses internal components.
Valves Seat: A sealing surface inside the valve body where the movable component (disc or ball) comes in contact to prevent fluid flow.
Movable Component (Disc or Ball): The part that opens or closes the valve based on the direction of fluid flow.
Spring: Provides the force to keep the valve closed. The spring opposes the flow and keeps the movable component against the valve seat.

Forward Flow (Open Position or Free Flow):

When fluid flows in the desired direction (from the inlet to the outlet), the pressure of the fluid on the inlet side overcomes the force exerted by the spring.
The force from the fluid pressure lifts the movable component (disc or ball) off the valve seat, allowing fluid to pass through the valve.
The valve is in the open position, and fluid can move freely from the inlet to the outlet.

NON RETURN VALVE FREE FLOW

The pressurised oil will enter through port P at inlet port and the oil pressure is high enough to overcome the spring force on the poppet.

The poppet is pushed off and moves towards the spring and open the port P and port A. This is free flow condition of check valve

NON RETURN VALVE FREE FLOW

Reverse Flow (Closed Position or No Flow):

If there is an attempt at reverse flow or if the forward flow stops, the pressure on the outlet side becomes greater than on the inlet side.
The spring force overcomes the pressure on the outlet side, forcing the movable component back onto the valve seat.
The valve is now in the closed position, and the sealing surface of the movable component prevents fluid from flowing in the reverse direction.

NON RETURN VALVE NO FLOW

It is functionally a one way traffic control sign which is obtained by no flow position.

When fluid attempts reverse direction of flow from port A to port P, the spring hold the poppet at the valve seat at port P and block the oil path, hence oil can not flow from port A to port P.

NON RETURN VALVE NO FLOW

Maintaining Unidirectional Flow:

The check valve’s design is such that it operates passively, responding to pressure differentials without requiring external power.
The spring is a critical component, providing the necessary force to keep the valve closed when there is no or insufficient forward flow.

Symbol

SYMBOL

Types of Hydraulic Check Valves

Swing Check Valve:
Utilizes a hinged flap that swings open in the direction of flow and closes to prevent reverse flow.

Ball Check Valve:
Uses a spherical ball that moves away from the seat to allow flow and returns to the seat to prevent backflow.

Spring-Loaded Check Valve:
Incorporates a spring that helps in keeping the valve closed until a certain pressure is reached, allowing fluid to flow against the spring force.

The Importance of Check Valves or non-return valve in Hydraulic Systems

Check valves, also known as non-return valves, play a crucial role in hydraulic systems, and their importance lies in several key functions that contribute to the overall efficiency, safety, and reliability of hydraulic systems. Here are some of the primary reasons why check valves are essential in hydraulic systems:

Prevention of Reverse Flow:

The primary function of a check valve is to allow fluid flow in one direction while preventing reverse flow. This is essential for maintaining the intended direction of hydraulic fluid movement through the system.

Protection of Components:

Check valves help protect sensitive hydraulic components, such as pumps and actuators, by preventing the reverse flow of fluid. Without check valves, fluid could flow back into the pump, potentially causing damage and reducing the efficiency of the system.

Maintaining System Pressure:

Check valves assist in maintaining system pressure by preventing pressure losses that could occur if fluid were allowed to flow backward. This is especially critical in applications where maintaining a specific pressure level is crucial for proper system operation.

Preventing Cavitation:

Cavitation is a phenomenon that can occur when there are sudden changes in fluid flow, leading to the formation and collapse of vapor bubbles. Check valves can help prevent cavitation by ensuring a continuous and controlled flow of fluid, reducing the risk of damage to hydraulic components.

Directional Control in Hydraulic Circuits:

Check valves are often used to control the direction of flow in hydraulic circuits. They allow fluid to pass in one direction while blocking flow in the opposite direction, contributing to the overall functionality and control of the hydraulic system.

Energy Efficiency:

By preventing backflow, check valves contribute to the overall energy efficiency of hydraulic systems. Unwanted reverse flow can lead to energy losses, and check valves help optimize the energy transfer within the system.

Reducing Shock Loads:

In hydraulic systems, sudden changes in fluid direction or pressure can lead to shock loads, potentially causing damage. Check valves help mitigate these shocks by controlling the flow direction and reducing the likelihood of sudden pressure changes.

System Stability:

Check valves contribute to the stability of hydraulic systems by maintaining a consistent flow direction and preventing sudden pressure drops that could affect the performance of connected components.

Material used for Hydraulic check valve or non-return valve

The materials used for hydraulic check valves, or non-return valves, depend on factors such as the type of valve, the intended application, and the properties of the fluid being handled.

Here are common materials used for various components of hydraulic check valves:

Valve Body:

Common materials for the valve body include:
Carbon Steel: Offers strength and durability. Suitable for general-purpose hydraulic applications.
Stainless Steel: Provides corrosion resistance, making it suitable for corrosive environments.
Brass: Used in applications where corrosion resistance and non-ferrous properties are important.

Valve Seat:

The valve seat, where the movable component (disc or ball) comes in contact to prevent fluid flow, is typically made of materials with good sealing properties. Common materials include:
Rubber (Nitrile, Viton, EPDM): Offers excellent sealing properties and is resistant to various fluids. Nitrile is common for hydraulic applications.
Metal Alloys: In some high-pressure or high-temperature applications, metal alloys may be used for the valve seat.

Movable Component (Disc or Ball):

The disc or ball is often made from materials that provide a good balance of strength and corrosion resistance. Common materials include:
Stainless Steel: Provides corrosion resistance and strength.
Brass or Bronze: Used in applications where non-ferrous materials are preferred.
Hardened Steel: Suitable for high-pressure applications.

Spring (in Spring-Loaded Check Valves):

For spring-loaded check valves, the spring is typically made of materials that provide the necessary force to keep the valve closed. Common materials include:
Stainless Steel: Offers corrosion resistance and durability.
Carbon Steel: Used in applications where corrosion resistance is not a primary concern.

Hinge or Pivot (in Swing Check Valves):

In swing check valves, the hinge or pivot point may be made of materials that provide low friction and durability, such as stainless steel or hardened steel.

Seals and Gaskets:

These are often made of materials such as rubber or elastomers to ensure a proper seal.

Selection of a Non-Return Valve

Selecting a non-return valve, also known as a check valve, requires consideration of several factors to ensure proper functioning and compatibility with the intended application.

Here are key factors to consider:

Valve Type:

Swing Check Valve: Utilizes a swinging disc to block reverse flow. Common in water and wastewater applications.
Lift Check Valve: Uses a guided disc that moves vertically to block reverse flow. Suitable for vertical installations.
Ball Check Valve: Employs a ball to block reverse flow. Good for high-pressure applications.
Wafer Check Valve: Designed for limited space and fits between flanges. Suitable for applications with space constraints.

Size and Flow Capacity:
Choose a valve size that matches the pipe diameter to ensure optimal flow performance.
Consider the flow capacity of the valve to accommodate the expected flow rates in the system.

Material of Construction:
Select materials compatible with the fluid being handled (corrosive, abrasive, etc.).
Common materials include stainless steel, cast iron, PVC, bronze, and others.

Pressure Rating:
Ensure that the valve has a pressure rating suitable for the operating conditions of the system.

End Connections:
Check that the valve’s end connections (flanged, threaded, socket-weld, etc.) match the existing or planned piping system.

Installation Orientation:
Some check valves are sensitive to the orientation in which they are installed. Make sure to install them correctly according to the manufacturer’s recommendations.

Operating Conditions:
Consider factors such as temperature, pressure, and the nature of the fluid (liquid or gas) to ensure the valve can handle the specific conditions.

Maintenance Requirements:
Evaluate the ease of maintenance and any special requirements for inspection or servicing.

Cost Considerations:
While cost is a factor, it should not be the sole consideration. Balancing performance, reliability, and cost is crucial.

Non-Return Valve or Check Valve Maintenance

Maintenance of non-return valves, also known as check valves, is essential to ensure their proper functioning and longevity. Regular maintenance helps prevent issues such as leakage, blockages, and impaired performance.
Here are general guidelines for non-return valve maintenance:

Visual Inspection:

Regularly inspect the valve for any visible signs of damage, wear, or corrosion.
Check for leaks around the valve body, seat, and connections.

Operational Testing:

Periodically test the valve to ensure it opens and closes smoothly.
Check for any unusual sounds during operation, such as excessive noise or vibration.

Cleaning:

Remove any debris or foreign particles that may accumulate on the valve disc or seat.
Clean the valve internals if there is evidence of fouling or scaling.

Lubrication:

If the valve has moving parts, ensure that they are adequately lubricated to prevent friction and wear.
Use a lubricant recommended by the valve manufacturer.

Check for Wear and Tear:

Inspect critical components for signs of wear, such as the disc, hinge, or seal.
Replace any damaged or worn parts according to the manufacturer’s specifications.

Inspect Seals and Gaskets:

Check the condition of seals and gaskets for any signs of deterioration.
Replace damaged or worn seals to maintain proper sealing.

Verify Valve Orientation:

Confirm that the valve is installed in the correct orientation as specified by the manufacturer.

Tighten Loose Connections:

Check and tighten any loose bolts, nuts, or connections associated with the valve.

Check Valve Housing:

Inspect the valve housing for signs of corrosion or damage.
If corrosion is present, consider applying appropriate protective coatings.

Inspect Springs (if applicable):

For spring-loaded check valves, inspect the condition of springs.
Ensure that springs are properly tensioned and functioning.

Pressure Testing:

Periodically conduct pressure tests to ensure the valve can withstand the specified pressure.
Follow the manufacturer’s guidelines for testing procedures.

Document Maintenance Activities:

Keep a record of maintenance activities, including inspection dates, repairs, and replacements.
Document any unusual findings or issues that may require attention in the future.

Follow Manufacturer Guidelines:

Always follow the maintenance guidelines provided by the valve manufacturer.
Adhere to recommended service intervals and procedures.

Regular and proactive maintenance is crucial to preventing unexpected failures and ensuring the reliability of non-return valves in a system. If in doubt or if more extensive repairs are needed, consult with the valve manufacturer or a qualified valve maintenance professional.

Hydraulic check valve or non return valve used for

Hydraulic check valves, also known as non-return valves, serve several important functions in hydraulic systems. Their primary purpose is to allow fluid to flow in one direction while preventing reverse flow. Here are some common applications and uses of hydraulic check valves:

Preventing Backflow:
The main function of hydraulic check valves is to prevent the reverse flow of fluid in a hydraulic system. This is crucial for maintaining the intended direction of flow and preventing damage to components.

Protection of Pumps:
Check valves are often used to protect pumps in hydraulic systems. Without a check valve, fluid could flow back into the pump when it is not in operation, potentially causing damage and reducing pump efficiency.

Directional Control in Hydraulic Circuits:
Check valves are used to control the direction of fluid flow in hydraulic circuits. They allow fluid to pass in one direction while blocking flow in the opposite direction, contributing to the overall control and functionality of the hydraulic system.

Cylinder and Actuator Control:
Check valves are employed in hydraulic systems that use cylinders or actuators. They ensure that the fluid can flow in one direction to extend or retract the cylinder, preventing unintended movement in the opposite direction.

System Pressure Maintenance:
Check valves help maintain system pressure by preventing pressure losses that could occur if fluid were allowed to flow backward. This is particularly important in applications where maintaining a specific pressure level is critical for proper system operation.

Preventing Cavitation:
Cavitation, which is the formation and collapse of vapor bubbles in the fluid, can be detrimental to hydraulic systems. Check valves help prevent cavitation by maintaining a continuous and controlled flow of fluid.

Safety in Hydraulic Systems:
Check valves contribute to the safety of hydraulic systems by preventing unexpected movements or uncontrolled releases of energy.

Advantages and Disadvantages of non-return valves or check valve

Non-return valves, also known as check valves, offer several advantages and disadvantages depending on the application and specific requirements of a system. Here’s a breakdown of the pros and cons:

Advantages

Prevention of Reverse Flow:
The primary advantage is their ability to prevent the reverse flow of fluid, maintaining the intended direction of flow in a hydraulic system.

Component Protection:
Non-return valves protect sensitive components, such as pumps and actuators, by preventing damage caused by reverse flow.

Maintaining System Pressure:
Check valves help maintain system pressure by preventing pressure losses that could occur if fluid were allowed to flow backward.

Directional Control:
They are essential for controlling the direction of fluid flow in hydraulic circuits, contributing to overall system control and functionality.

Energy Efficiency:
By preventing backflow and maintaining a consistent flow direction, non-return valves contribute to the energy efficiency of hydraulic systems.

Safety:
Non-return valves contribute to the safety of hydraulic systems by preventing unintended movements, ensuring stability, and reducing the risk of damage to equipment or injury.

Simple Design:
Check valves often have a relatively simple design, making them easy to install and maintain.

Disadvantages

Pressure Drop:
Some non-return valves may cause a slight pressure drop in the system, especially in designs that involve flow restrictions or resistance.

Backflow Velocity:
In certain conditions, backflow velocity can cause wear on the valve components over time, leading to potential maintenance issues.

Potential for Water Hammer:
Rapid closing of check valves, particularly in high-flow systems, can result in water hammer, a phenomenon that may cause pressure surges and mechanical stress.

Limited Flow Control:
Check valves are typically binary in their operation—fully open or fully closed. They do not provide nuanced control over fluid flow compared to some other types of valves.

Size and Weight:
Check valves can be relatively bulky and heavy, particularly in high-pressure or large-diameter applications.

Risk of Failure:
While generally reliable, check valves can fail if not properly sized, installed, or maintained. Failure can lead to issues such as reverse flow or leakage.

Noise Generation:
The rapid closure of check valves, especially in high-flow systems, can generate noise, which may be undesirable in certain applications

FAQ

What is a hydraulic non-return valve?
The valve which allows flow of oil in only one direction and block the reverse flow of oil, is known as check valve or Non Return Valve.

What is a non-return valve used for?
A non-return valve allows a medium to flow in only one direction and is installed to ensure that the medium flows through a pipe in the correct direction, where pressure conditions could cause reverse flow.

Does VRN reduce flow?
Yes, they reduce the flow.

You may also like

By Aditya

Hi, I’m Aditya Sharma, a professional blogger from Gurgaon, India and I launched this blog called aadityacademy on July 2021. aadityacademy.com is a mechanical Project-oriented platform run by Aditya sharma and I got the motivation to start aadityacademy blog after seeing less technical education information available on google.

One thought on “What is Non Return Valve – Check Valve, Working, Type, Symbol”

Leave a Reply

Your email address will not be published. Required fields are marked *
